MMA Welding

What is MMA Welding?

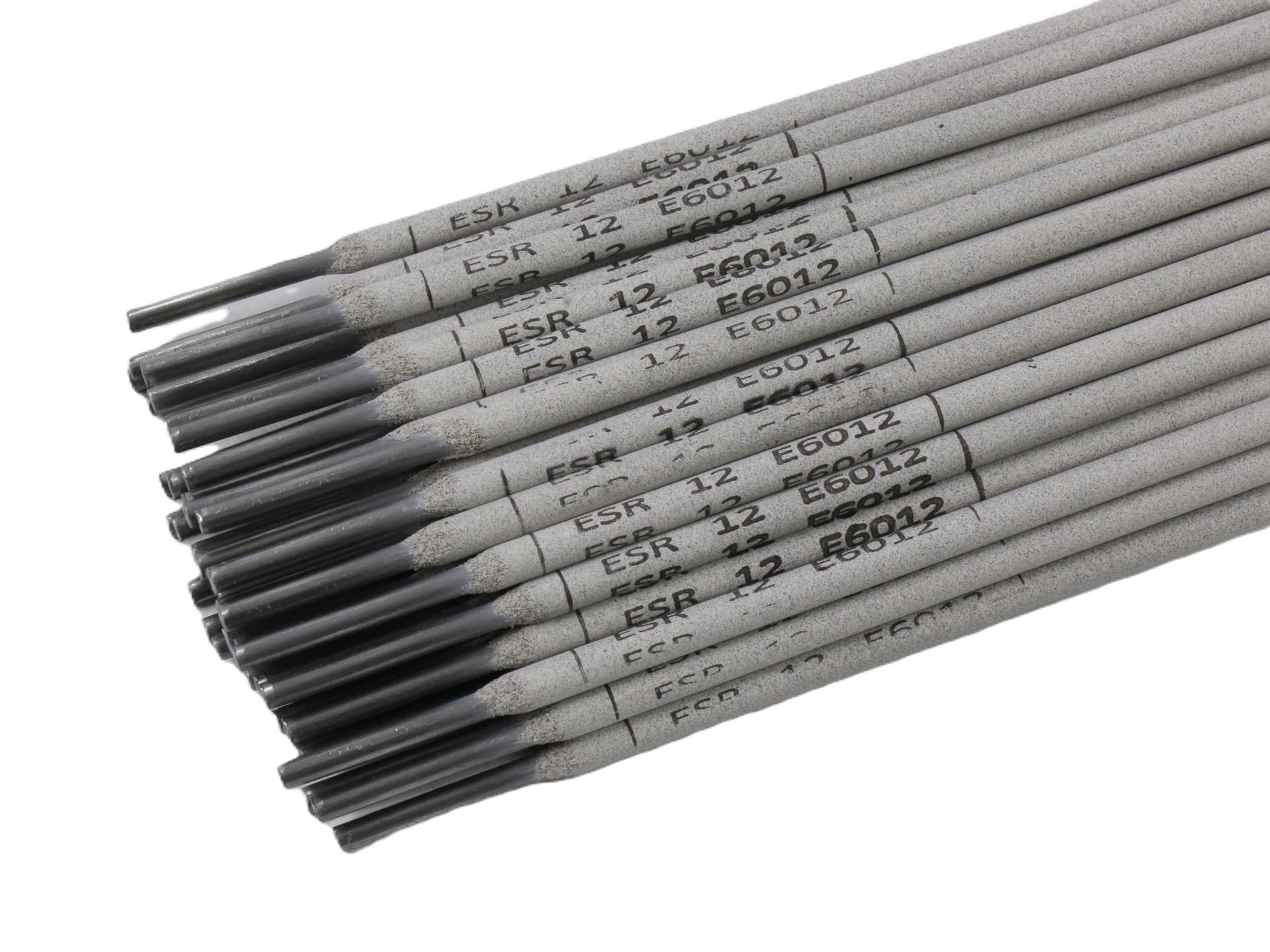

Manual Metal Arc Welding (MMA or MMAW) otherwise known as shielded metal arc welding (SMAW), is a process where the arc is stuck between an electrode flux coated metal rod and work piece.

When coming together both the rod and the surface of the work piece is melted to create a weld.

MMA welding or stick welding, is form of manual arc welding that enables a consumable electrode covered with a flux to lay the weld.

An electric current, in the form of either alternating current or direct current from a welding power supply (see below for our top of the range power sources, )is used to form an electric arc between the electrode and the metals so they are joined.

The work piece and the electrode, form what is known as a weld pool that cools to form a joint. As the weld is laid, the flux coating of the electrode disintegrates, giving off vapours that serve as a shielding gas and providing a layer of slag, both of which protect the weld area from atmospheric contamination.

Because of the versatility of the process and the simplicity of its equipment and operation, MMA welding is one of the world's first and most popular welding processes. It dominates other welding processes in the maintenance and repair industry, and though flux-cored arc welding is growing in popularity.

MMA continues to be used extensively in the construction of heavy steel structures and in industrial fabrication and at Techweld we strive to provide the best equipment in the West Yorkshire and surrounding areas.

The process is used primarily to weld iron and steels (including stainless steel) but aluminium, nickel and copper alloys can also be welded with this method.

XTS 163 - 160A MMA Inverter 230V

Multi Mode The XTS 163 MMA uses latest technology to provide a compact and reliable machine, ideal for everyday applications.

This machine also provides a lift arc mode which limits the arc current when the tungsten touches the work piece preventing electrode damage saving you money and keeping a clean standard of welding.

Call Us Now

XTS 163 Dual Voltage - 160A MMA Inverter

This machine replicates qualities of the machine above however gives you the option of a smart dual voltage use.

The XTS 163DV operates on 230 or 110V supply using smart switching technology making it ideal for site use. Electrodes up to 3.2mm can be used with ease.

Call Us Now

BESTER 170-ND

This lightweight BESTER Inverter allows a precise and reliable weld each time. weighing only 3.6Kg the inverter is easily transportable and allows you use on site or on home maintenance or structural fabrication. For accurate Tig welds you are able to take advantage of the digital display to set up your job as accurate as you need.

Call Us Now

XTS 204 - 200A MMA Inverter 230V

Multi Mode The XTS 204 is a compact but powerful machine ensuring maximum portability and performance. Electrodes up to 4.0mm can be used with ease.

The recommended Generator for this machine is size 10 KVA.

Call Us Now

Invertec 275S

The INVERTEC 275S is a next generation STICK inverter that offers excellent welding processes coupled with high performance, as well as increased productivity. This machine is designed with the latest energy-saving technology and is ready to work in the most difficult environments due to its unique design.

To achieve excellent welding results, the INVERTEC 275S comes complete with in-built communication devices and digital transmission systems, such as USB's, allowing the operator to monitor and track welding operations more easily.

Call Us Now

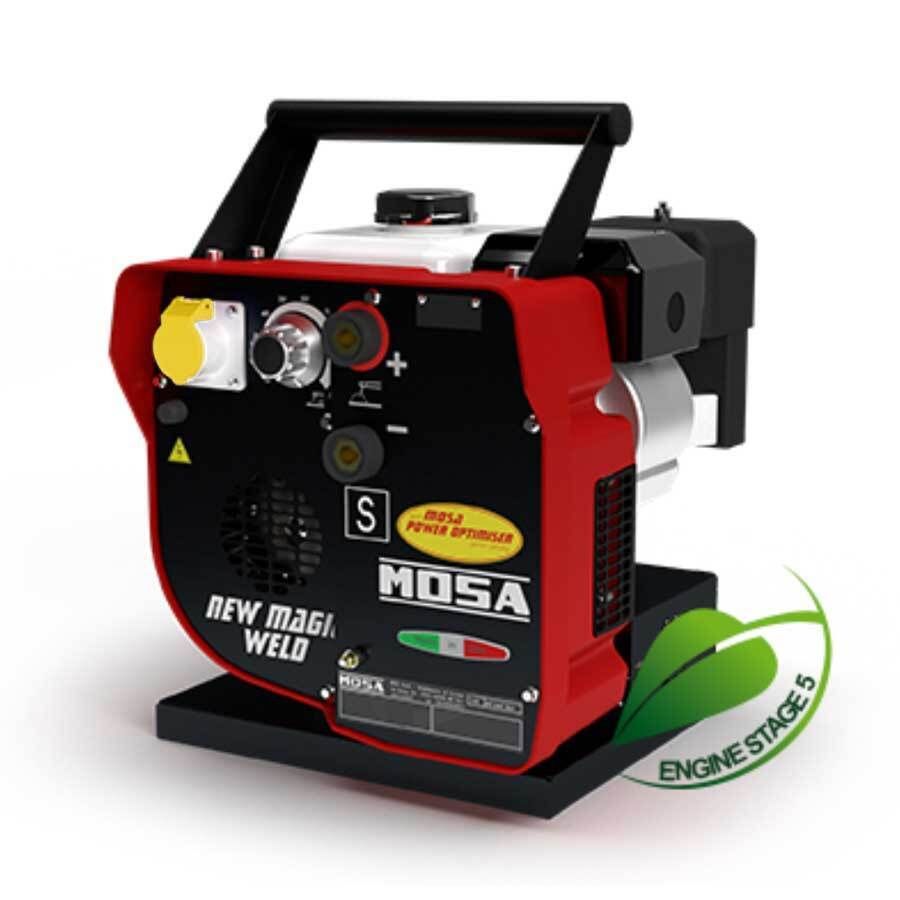

Magicweld 150 Petrol Welder Generator

This is the Moss MagicWeld 150 Amp Petrol Engine Driven Welder Generator. Specifications include:

Electrode Range: 2.5-4.0mm
Duty Cycle: 150A@60%
Open Circuit Voltage: 67V
AC Aux Power: 1.6kW DC 110V
Socket Layout: 1x16A 110V
Running Time: 2.5Hours
