MIG Welding

What is MIG Welding

Metal Inert Gas (MIG) and Metal Active Gas (MAG) welding are gas metal arc welding (GMAW) processes that use heat created from a DC Electric arc between a consumable metal electrode and a workpiece which melt together to create a weld pool that fuses to form a join. MIG and MAG welding are known as gas metal welding GMAW) in the USA. We can supply a range of welders to assist to assist you in your work no matter how big or small the job may be.

XTM 161i - 160A MIG Inverter 230V

The XTM 161i is a portable 230V Single Phase MIG Power Source Inverter. This machine is able to cope with inputs which fluctuate by +/-15% & can be used with the majority of generators. The smooth DC output ensures excellent arc characteristics. Materials up to 4mm can be welded with ease.


Synergic control provides rapid setting. Lightweight construction means the machine is very portable and the removable Euro connection torch makes for easy transport and storage. Can be used in MMA, Lift TIG, MIG manual and synergic with or without GAS. Wire sizes of 0.8-1.0mm can be used with ease.

  • Key Features

    • 230V Single Phase Machine
    • Synergic MIG
    • Lift TIG and MMA Welding
    • Compact and Portable
    • 160A @ 40% Duty Cycle
    • Gas or Gasless Operation Options
    • 2T / 4T Trigger Latching
    • Accepts 5kg (200mm) Spools
    • 0.6mm-1.0mm Wire
    • Supplied with 3m Earth Lead
Call Us Now

XTE 181C - 180A Automotive MIG Machine 230v

The XTE 181C is a compact automotive 230V Single Phase MIG Transformer Power Source Machine.

It has a DC Output and when combined with the correct type of wire it is suitable for welding mild steel, stainless steel and aluminium (from 0.75mm – 5.0mm). 8 voltage steps allow fine tuning. The feed box ensures reliable feeding of 0.8mm and 1.0mm wires.


The machines full-sized cabinet can accept a gas cylinder and its large wheels mean it is easily portable and can be moved from job to job, making the welding machine very versatile.

  • Key Features

    • 230V Single Phase Machine
    • Euro Torch Connector
    • 185A @ 15% Duty Cycle
    • 2 Roll Drive (Metal Feed Box)
    • 8 Voltage Steps
    • Stand for gas cylinder (half bottle)
    • Polarity can be changed for gasless welding
    • Built in gas valve
    • Forced Air Fan Cooling
    • Overload warning indicator
    • Infinitely variable wire speed
    • Holds 5kg wire spools
Call Us Now

GYS Multiweld 180M-C Inverter

The MULTIWELD 180M-C is a compact, single-phase power source combining MIG/MAG, flux-cored wire and MMA welding processes. Its intuitive interface incorporates two digital displays for simple, precise settings. Easily portable and is recommended for welding steel, stainless steel and aluminium up to 3 mm thick (MIG/MAG).

  • Key Features

    • Single Phase 230V
    • Steel wire: Ø 0.6 and 0.8 mm-
    • stainless Steel wire: Ø 0.8 mm
    • Aluminium wire: Ø 0.8 and 1.0 mm
    • Flux-cored wire (reverse polarity): Ø 0.6 and 0.9 mm
    • 4 Roller Feeder
    • Euro Torch Connection
Call Us Now

XTM 201Di - 200A Multi Process Inverter

One of our most popular selling machines is the XTM 201Di Multi- Process Digital Inverter for MIG, DC TIG or MMA, this machine does it all.

This machine is ideal for welding Stainless Steels, Steels and Aluminium. Whether you have years of experience or are newer to the industry the digital display and smart technology allows for easy set up and control over volts and amperage set up. Let the machine help you!

  • Key Features

    • Burn Back Control Function Yes
    • Gasless Wire Function Yes
    • MMA Function Yes
    • 200A @ 25% Duty Cycle
    • Output Voltage MIG 14.5-24V, TIG 10.4 -18V, MMA 20.4-28V
    • Synergic Function Yes
    • TIG Function Lift with tr
    • Type MIG Inverter
    • Wire Size 0.6-1.0mm
Call Us Now

XTM255i - 250A MIG Inverter Machine

The XTM 255i single phase MIG Inverter is a dual voltage high performance multi-process power source capable of MIG, Lift TIG, and MMA welding. The LED digital displays show all parameters and data in real time. The machine has built in synergic control, so welding parameters will adjust automatically when the current is changed, making it easy to operate.


This machine is designed to work well with Industrial Manufacturing, Metal Fabrication, Sheet Metal Work, Synergic Program for Steel Stainless Steel and Aluminium.

  • Key Features

    • Multi-Process MIG/TIG/MMA Welding
    • 250A @ 25% Duty Cycle
    • 110V / 230V Dual Voltage, Single Phase Machine
    • 4 Roll Feeder
    • Quick and Easy Selection of Welding Processes, Control type, Material and Wire Size
    • Synergic Control
    • Fan On Demand
    • 2T / 4T Trigger Latching
    • Real Time Display of Parameters and Data
    • Soft Switching Technology for improved efficency
    • Clear Visor for Front Panel Controls Protection
    • Supplied with Gas Hose and 3m Earth Lead
Call Us Now

POWERTEC i320C

The POWERTEC® i COMPACTS RANGE is built on the latest Lincoln inverter platform, ensuring optimal MIG/MAG and MMA welding performance. The range consists of: 250A, 320A, 380A and 450A power sources. The Plug & Play water cooler COOLARC® 26 is available for POWERTEC® i380C & i450C ADVANCED.


Suitable for General Fabrication, Construction Site and Light Industry work.

  • Key Features

    • Premium arc performance with repeatable arc ignition, excellent arc stabillity and rapid parameter adjustment.
    • MIG/MAG and STICK process.
    • Easy access to the most commonly used welding parameters.
    • Perfect feedability: optimized wire positioning, four driven rolls and inspection window
Call Us Now

9104H Cobra by Stealth 315 Toolkit 415V

The 9104H Cobra is the new powerful machine in the Stealth Range that combines air cooling technology with MIG welding capabilities, providing precise and efficient welding for all your projects. With a compact design and reliable performance, the Cobra by Stealth 315 is the perfect tool for any welding expert.

  • Key Features

    •  LCD screen for accurate setting & feedback of welding output.
    • New PWM technology and IGBT inverter technology.
    • MIG/MAG with Manual and SYN function:  -Synergic programs for aluminum, mild steel, stainless steel and CuSi - 2T/ 4T welding mode - function parameter adjustment.
    • MMA function (Stick electrode) - Hot start (improves electrode starting) - Adjustable Arc Force.
    • DC TIG - Lift Arc ignition (prevents tungsten sticking during arc ignition) - 2T/4T Trigger Control - Adjustable Down slope.
    • Internal wire feeder, gear driven for up to 300mm Ø spool.
    • Euro style MIG torch connection.
    • IP21S rating for environmental/safety protection.
    • Tolerant to variable power supply.
    • Spool Gun Connection.
Call Us Now

GYS Multiweld 400T-S Inverter

The MULTIWELD 400T is a three-phase 400Amp power source combining MIG/MAG, gasless flux-cored wire, and MMA welding processes. Its intuitive interface incorporates two digital displays for simple and accurate control.

Equipped with a precise and powerful 4-roll wire feed system, the MULTIWELD 400T can weld upto Ø 1.6mm wires even on aluminium.

  • Key Features

    •  Steel and stainless steel wire: Ø 0.6 to 1.6mm
    • Aluminium wire: Ø 0.8 and 1.6mm
    • Flux-cored wire (polarity inversion) : Ø 0.9 to 1.6mm
    • 4 Roll Feeder
    • Trigger managment 2T or 4T.
    • 3 settings for maximum control: Voltage selection, wire feed speed and post-gas duration
    • Simple Display for easy set up
    • Euro Torch Fitting
Call Us Now

9196H-WC Cobra by Stealth 400F + Wire Feed W/C 415V

The Cobra by Stealth 400 LCD 3-In-1 Multi-process Water Cooled Welding Machine is the ultimate tool for versatile welding capabilities. With its LCD screen and 3-in-1 functionality you have the option to easily switch between processes and weld with precision. This machine can be the perfect asset for any welding project you choose.

  • Key Features

    • LCD screen for accurate setting & feedback of welding output.
    • New PWM technology and IGBT
    • inverter technology.
    • MIG/MAG with Manual and SYN function:  -Synergic programs for aluminum, mild steel, stainless steel and CuSi - 2T/ 4T welding mode - function parameter adjustment.
    • MMA function (Stick electrode) - Hot start (improves electrode starting) - Adjustable Arc Force.
    • DC TIG - Lift Arc ignition (prevents tungsten sticking during arc ignition) - 2T/4T Trigger Control - Adjustable Down slope -Water/air cooling mode.
    • Internal wire feeder, gear driven for up to 300mm Ø spool.
    • Euro style MIG torch connection.
    • IP21S rating for environmental/safety protection.
    • Tolerant to variable power supply.
    • Spool Gun Connection.
    • Integrated heavy duty industrial trolley and water cooler (optional).
Call Us Now

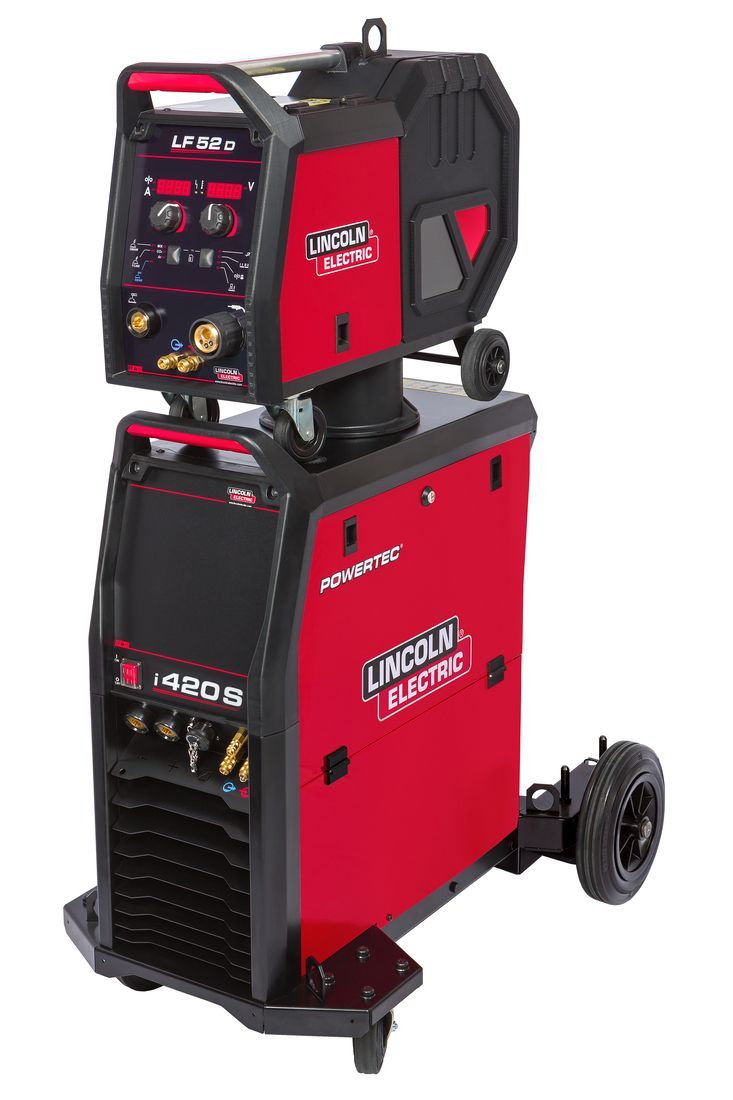

POWERTEC i420S

The POWERTEC i420S is designed for heavy duty and structural welding needs. With an added option of applying a water cooling unit with the addition of the COOLARC® 26. Power sources with a choice of separate wire feeders, standard WF 52D for basic use, or the advanced WF 56D for more demanding applications, helps you to fulfil every possible welding need.

  • Key Features

    • Premium welding behaviour on CV MIG & Stick welding
    • Ready for the heaviest industrial conditions
    • Synergic capability (with LF56D).
    • Optimised ergonomics, Lincoln reliability (True HD).
    • Water cooled version available by adding the Plug & Play water cooler COOLARC® 26
Call Us Now

We can also supply...

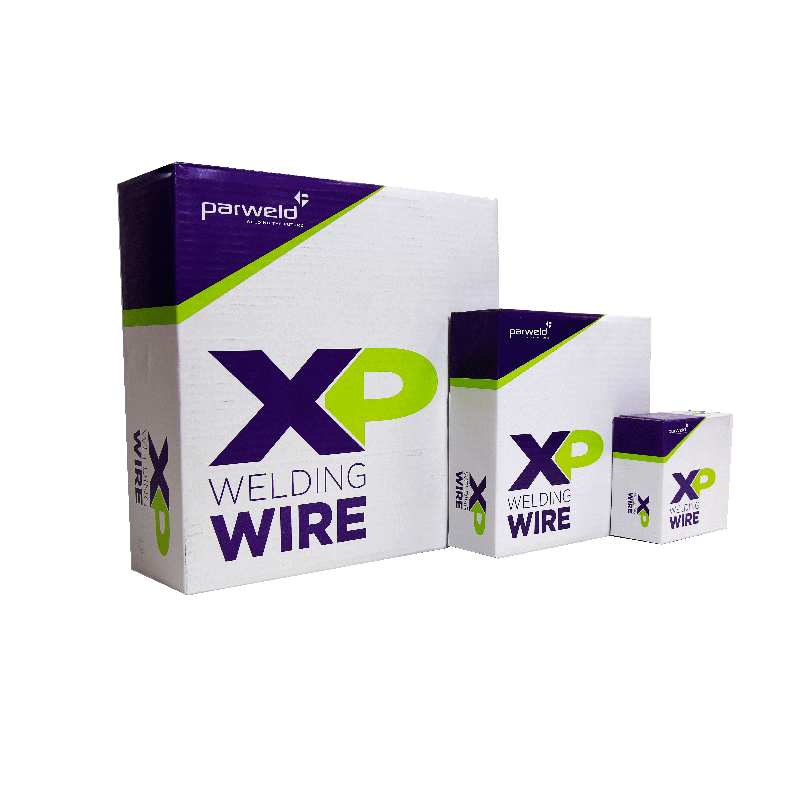

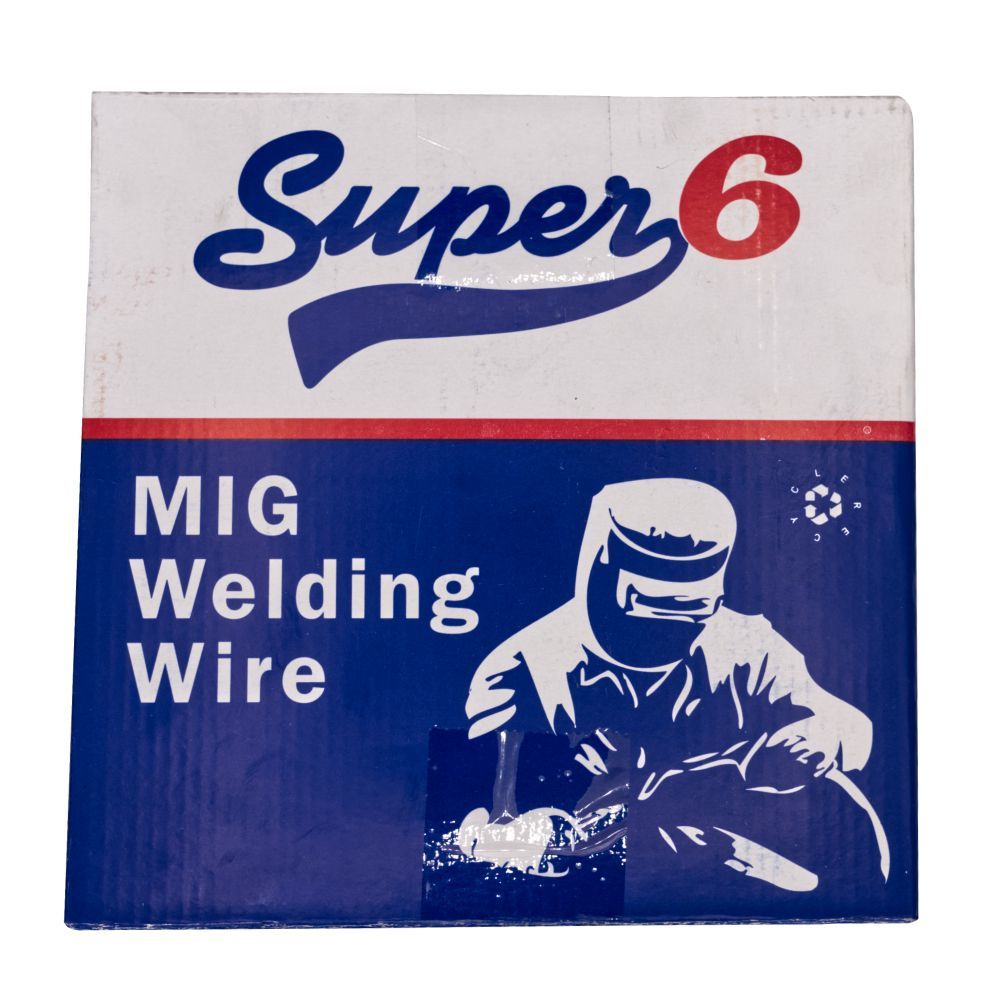

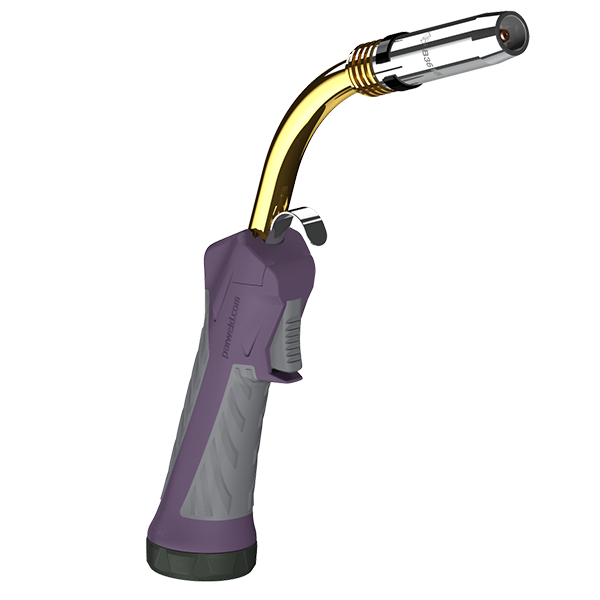

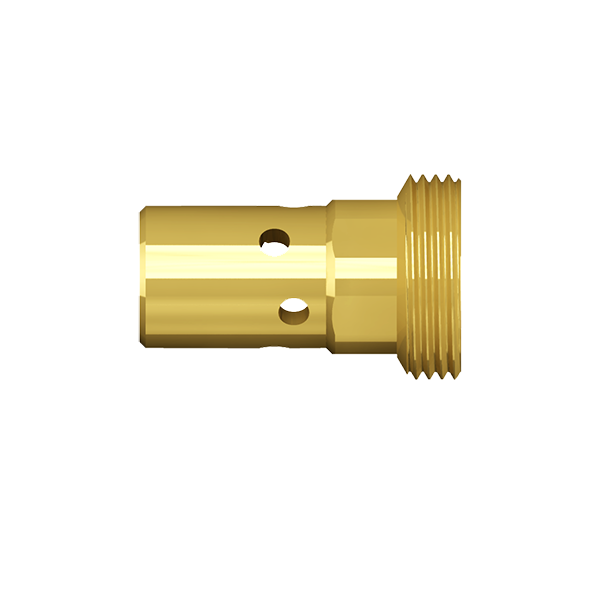

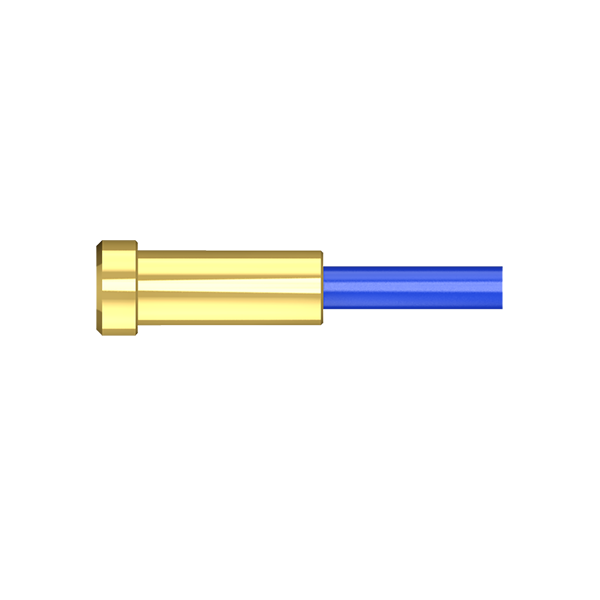

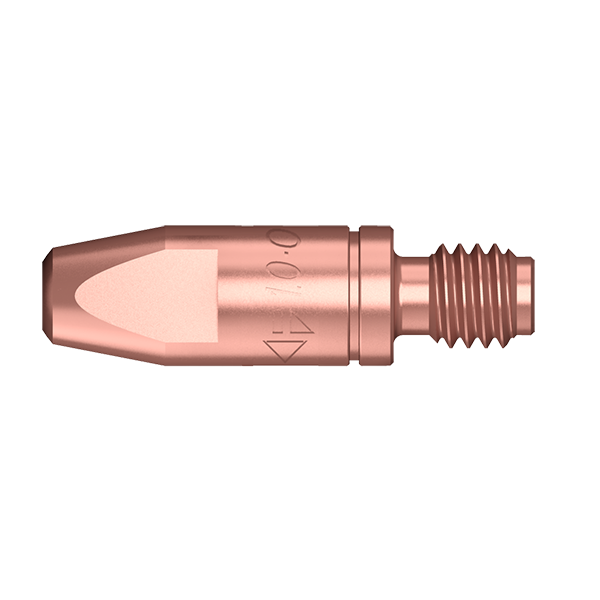

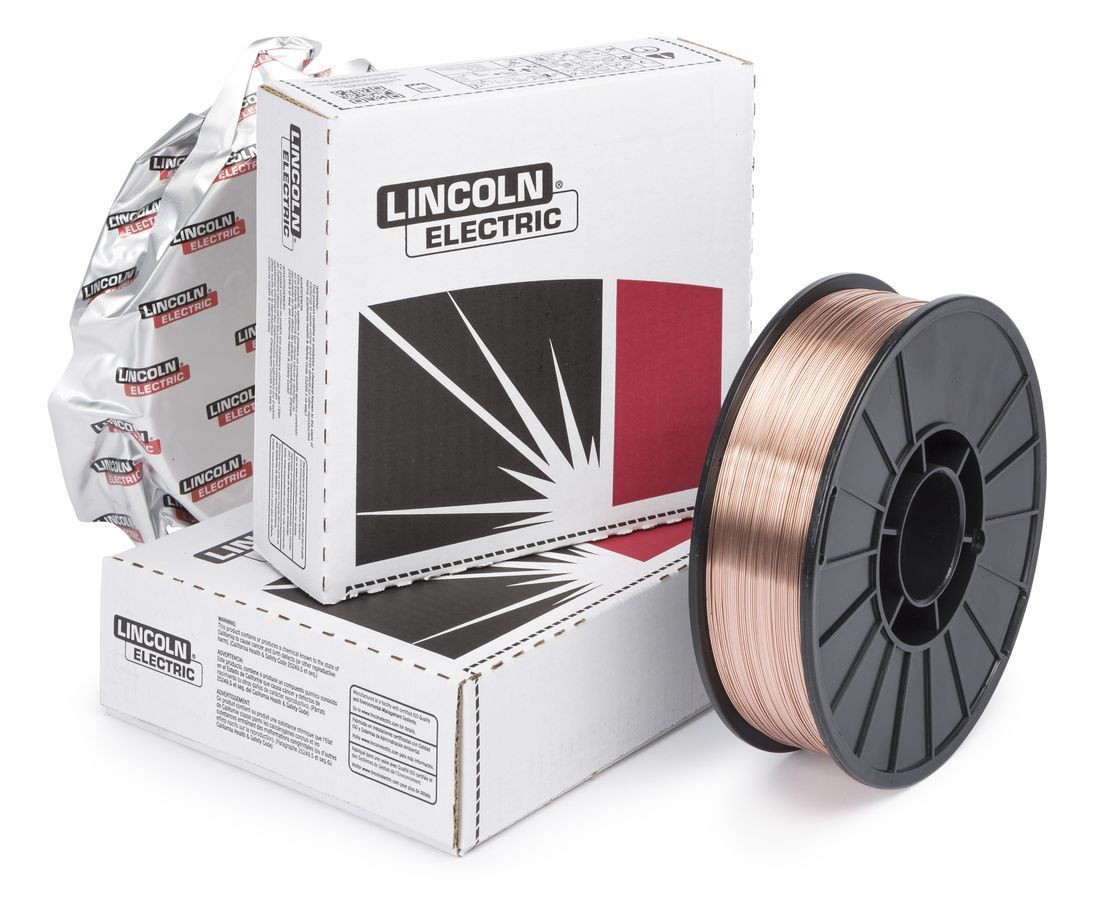

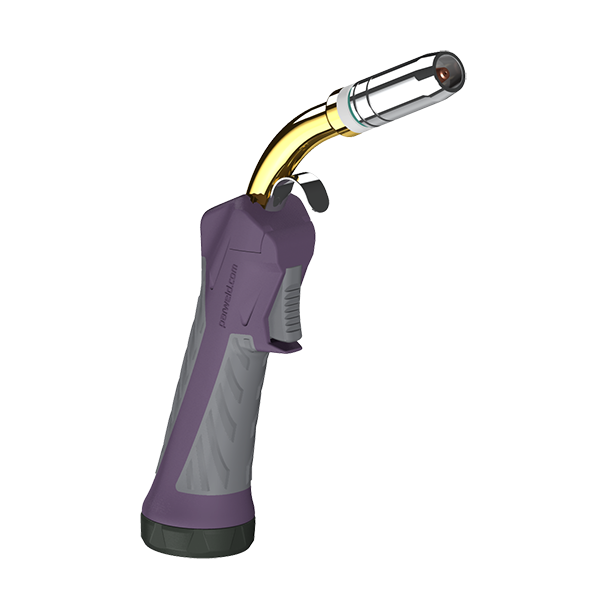

Consumables
